l 液压倾斜升降平台,辅助轻便灵活的活动支腿,方便任何事故车上下。平台起落过程中不与地面接触,减少设备在起落中对地面的损坏。
l 四排平板方孔工作平台,单组宽600mm,整体台面经大型数控火焰切割一次成型,均匀光滑,平面度高、强度大、固定无盲区、拉伸更快捷方便。
l 牵引拉塔可沿工作台轨道作360°旋转,独特的滚轮转动机构设计,从而使拉塔的移动更平稳、灵活。独特的拉塔固定方式,方便可靠、无盲区。
l 专利通用主夹钳独特的虎式钳口设计。力学流线设计的钳口,经过渗碳、热处理工艺,保证了各种车型的快速夹紧,提高了工作效率以及使用寿命。
l 随机配置的各种夹具,辅具可满足任何变形的校正、修理。
l 液压系统性能可靠,使用寿命长、动力强劲。维修保养方便快捷。
全球同步的车体数据库资料,保证提供最新最快的车体数据。
l Manganese plate platform, high strength reinforcement plate, flexible assistant leg makes the platform loading and unloading easily.
l There are more holes on the platform, more easy to fix the fixture, no blind spots, make the bottom corrected without difficulties, eliminate the distortion and protect the scatheless parts.
l Two hydraulic towers can be moved smoothly alongside the platform and turn 360° with minimal efforts. The hydraulic cylinders work vertically, resulting in maximum force and most powerful effectiveness.
l Universal clamp are forged and heat-treated, high strength and long life, fix the auto quickly and accurately, also the extension height can be adjustable.
l High quality chains and plate tools are used flexibly and conveniently with long life. The entire series of tool accessories enable to do any misshape correction work.
l Hydraulic system with good design has powerful driving force, long life and low failure rate.
l Top-quality welding with high strength and good-looking.

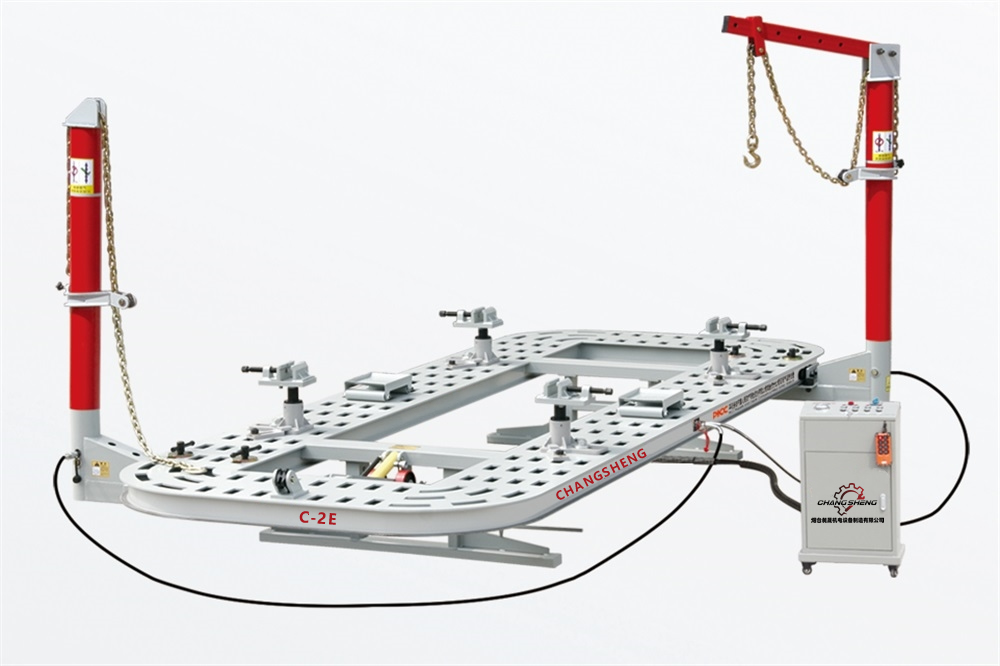

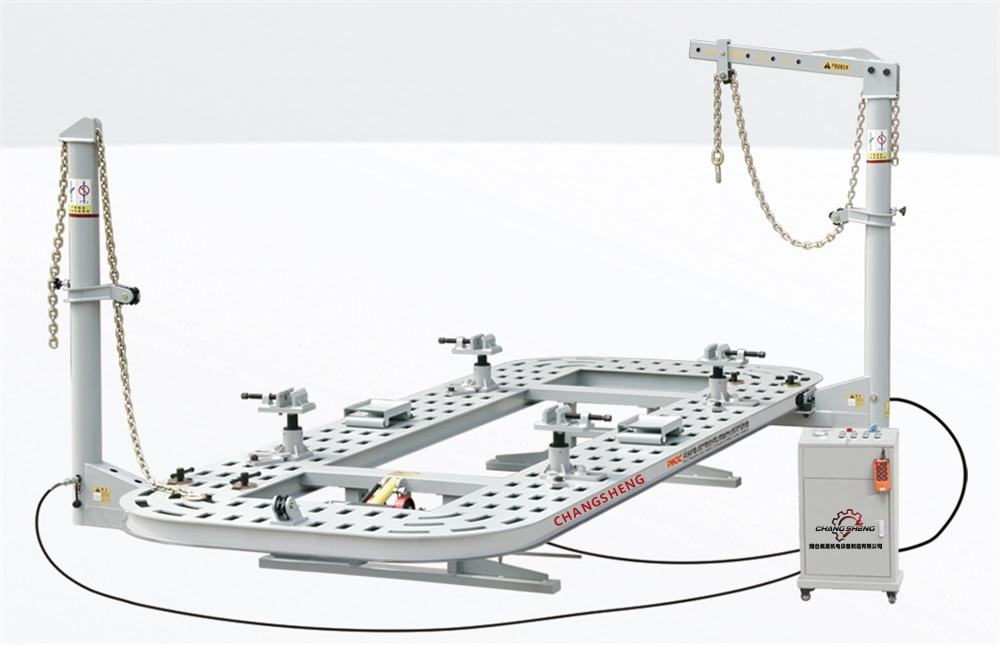

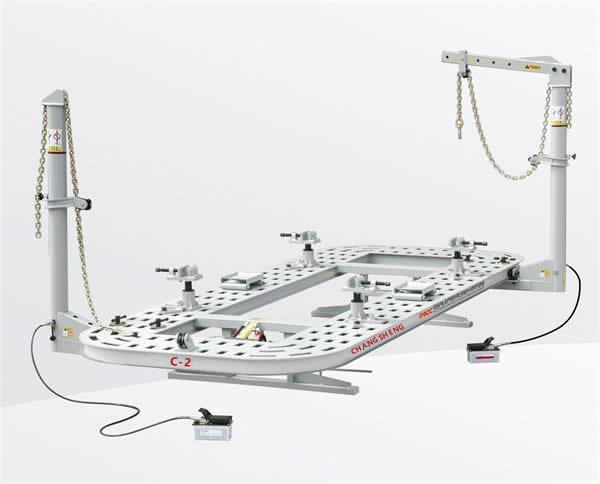

主要技术参数 | SPECIFICATION | C-2/C-2W/C-2E |
工作台长度 | Platform length | 5600mm |
工作台宽度 | Platform width | 2100mm |
工作台高度 | Platform height | 520mm |
拉塔最大推力 | Post Max.tension | 95KN |
动力气源压力 | Pneumatic pressure range | 0.8Mpa |
塔柱工作范围 | Post working range | 360° |
最大承载 | Max.lifting weight | 3500Kg |
因适应市场要求,公司保留修改权利 |
