C1L大梁校正仪矩形管,方管大梁校正仪,气动


  Ø 矩形管管厚为6mm工作平台,高强度筋板,辅助轻便灵活的支腿,使任何事故车上、下方便。


  Ø 平台上更多的工作孔位,夹具固定方便操作。无工作盲区,底部矫正无障碍,轻松实现了消除变形应力保护无损伤部位。


  Ø 双拉塔可沿工作平台合作360度环绕旋转。独特的滚轮转动,使拉塔的移动更平稳,更灵活,对车体的拉、压、推、顶进行全方位操作。

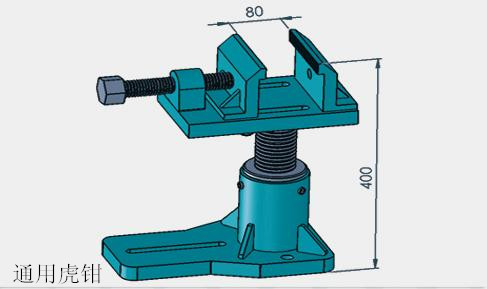

  Ø 通用车体固定夹钳,经过锻打,热处理工艺,强度高,使用寿命长,同时可任意调整工作高度和角度。


  Ø 丰富的钣金工具和附件,轻松实现汽车车身整形修复。


  Ø 液压泵根据国内维修环境量身定做,动力强劲,经久耐用。


  Ø 全球同步的车体数据库资料,保证提供最新最快的车体数据。



  Features (rectangular tube tilt lifting platform): special for suv


  Ø 6mm thickness rectangular tube platform, high strength reinforcement plate and flexible leg make the platform loading and unloading easily.


  Ø There are more holes on the platform, more easy to fix the clamps, no working blind, make the bottom corrected without difficulties, eliminate the deformation and protect the scatheless parts.


  Ø Two hydraulic towers can be rotated 360 degree alongside the platform. Unique wheel rotation,makes the tower work steady and flexibility,for a full range of protection.


  Ø Universal clamps are forged and heat-treated, high strength and long life, fic the auto quickly and accurately, also the extension height and angle can be adjustable.


  Ø Various tools almost considered any deformation correction and repair.


  Ø Hydraulic system with good design has powerful driving force, long-life and low failure rate.


  Ø The global synchronization of database,ensure to provide the latest and fatest data.


主要技术参数

 SPECIFICATION

 C1L

 S2L

工作台长度

Platform length

5200mm

5600mm

工作台宽度

Platform width

2120mm

2120mm

工作台高度

Platform height

520mm

520mm

拉塔最大推力

Post Max.tension

95KN

95KN

动力气源压力

Pneumatic pressure range

0.8Mpa

0.8Mpa

塔柱工作范围

Post working range

360°

360°

最大承载

Max.lifting weight

3500Kg

3500Kg

因适应市场要求,公司保留修改权利
